PANEL Details
Rib To Rib Distance: 12"
Rib Height: 1 -1/4’’
Panel Length: 3' to 51'
Net Coverage: 36" (3FT)
Slope: 1:12 Minimum Roof Slope
PANEL FEATURES
Material Type: Standard galvalume (zincalume) or galvanized available for special orders
Available Gauges: 26 Standard, 24, 22 available for special order

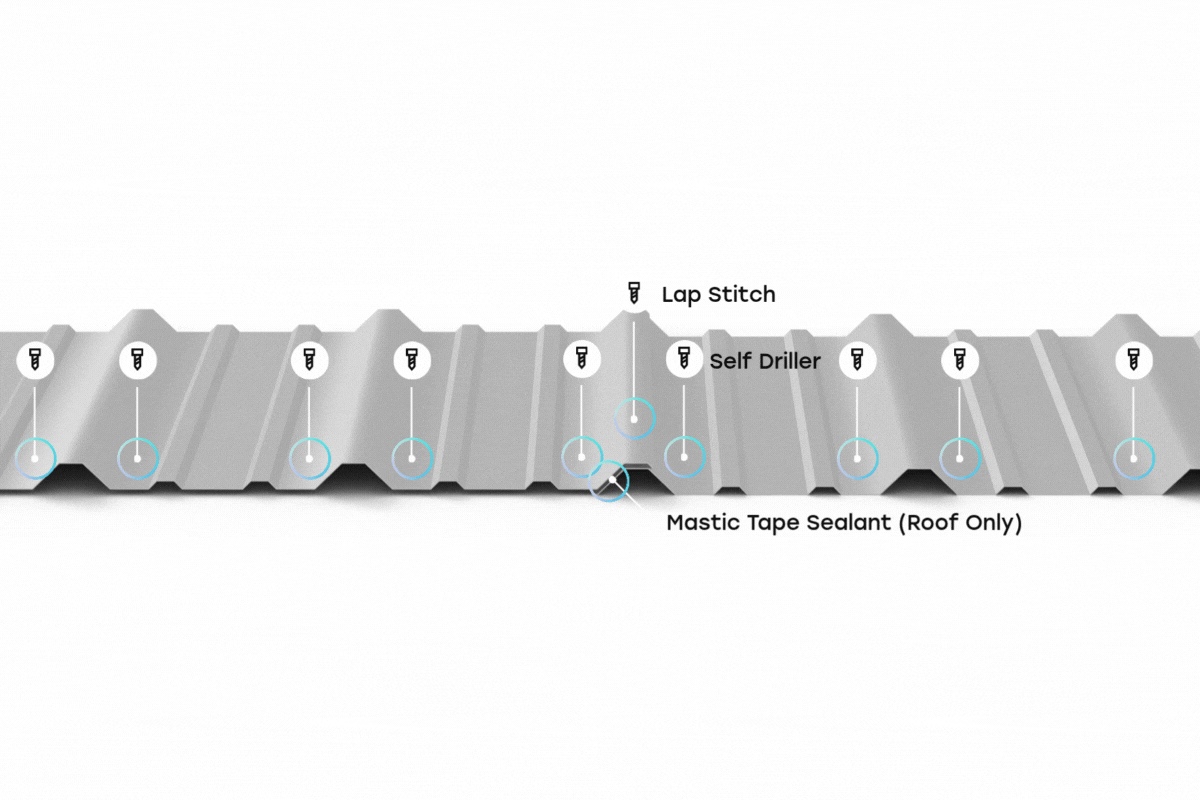

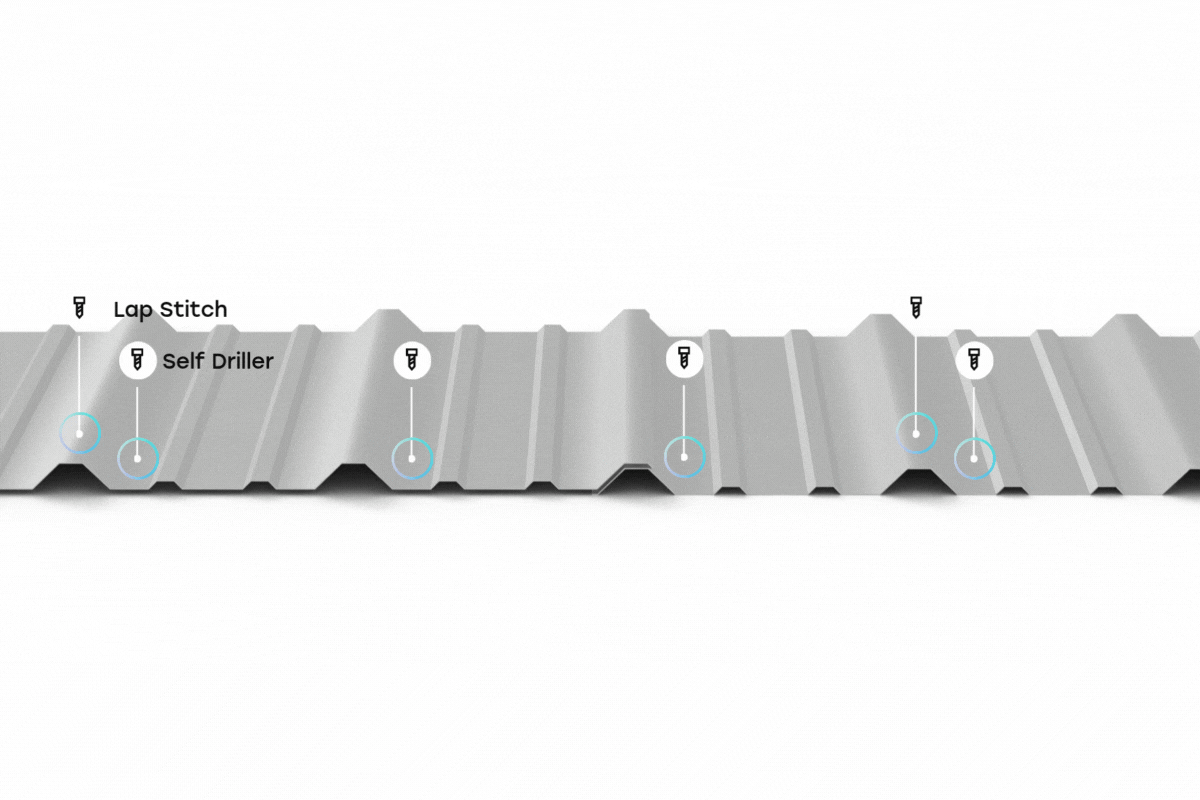

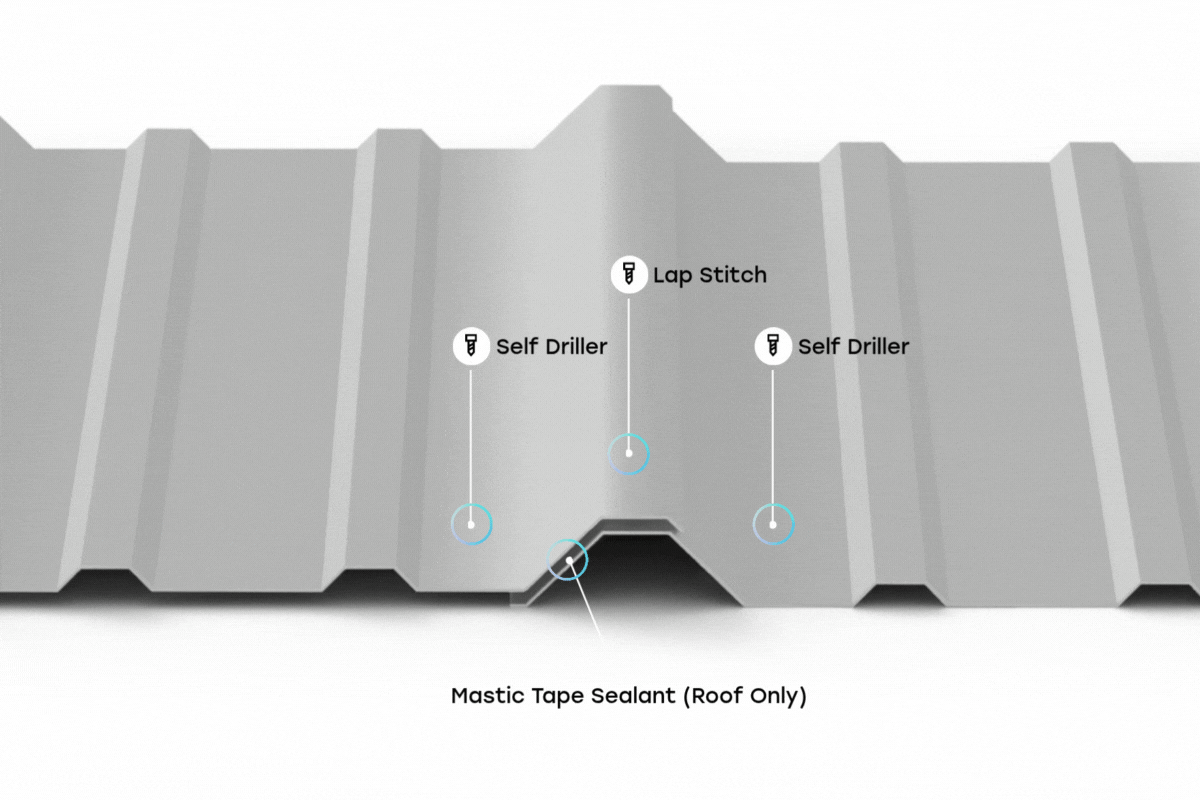

Fasteners: Exposed Fasteners
Application: Over solid substrate or open framing
Finish: Standard galvulame bare or SMP available for special orders
Trim/Flashing: Standard Metroll universal trim/flashing & custom available for special orders in bare and color
Installation Method
PBR panels are easy to install and can be quickly installed by professionals, which can save time and money on construction projects.
They are also available in a range of colors and finishes to suit different design requirements.
Additionally, PBR panels are designed to provide good thermal insulation and weather protection, which can help to improve the energy efficiency of buildings.
General Procedure
1. Refer to trim connection details to determine order of trim and panel placement.
2. Align the edge of the first sheet along the edge of the roof. The panel should hang over a maximum of 2” at the eave and should not extend past the center of the ridge space.
3.After the first panel is properly placed, use the recommended screws to secure the panel.
4. Lay down the next two panels and then check the alignment at the eave and ridge to ensure the panels are square.

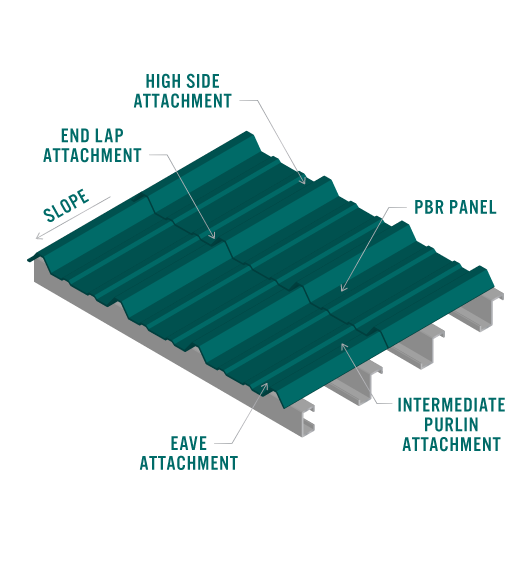

Benefits of PBR
One of the main advantages of PBR panels is their durability and strength.
The raised ribs on the panel provide extra support and protection against weather and other environmental factors.
They are also low-maintenance and have a long lifespan, making them a cost-effective choice for building owners and contractors
